Argie 15 Dinghy Next Stage

In my last post about his Argie 15 project, Kevin Agee closed in all of the seats. What remained was to tidy up the drains through the centre seat. This he did with an angle grinder to trim them flush with the bulkhead and the fillets against the hull skin.
Trimming the port drain, the starboard one still projecting
 from the seat.
The drains are neatly trimmed and Kevin called me in to help
 him turn the hull over. I got the lighter end.

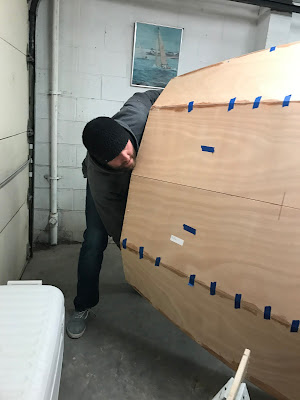

Kevin at the heavier end. The slight V in the aft sections is
achieved by scribing half-way through the plywood from
the outer face.

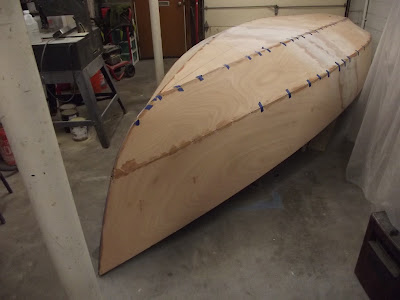

Turned over and ready for glassing the outside of the chines.
The chines were glued with epoxy adhesive between the ties before they were
 removed. Now the gaps will be filled before the glass tape is applied.
Also going ahead are the rudder and daggerboard. This started by laminating blanks from strips of cedar and poplar glued with epoxy adhesive, to give a striped effect. Clear-finishing with varnish over fibreglass/epoxy brightens the colours, to give a very attractive finish.

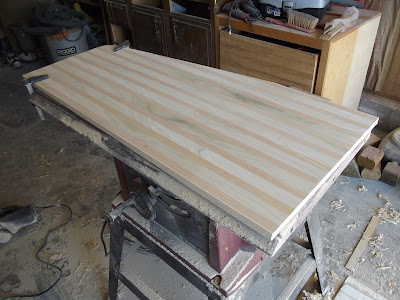

The daggerboard blank, sanded smooth and ready for shaping.
Kevin laminated the blanks and cut the outline shapes, then gave them to me to shape the foils and cover with fibreglass/epoxy. I will cover that work in separate posts.
