Monday, March 11, 2019

Sportfisherman Fish Box & Centre Console


After a period of laborious filling/sanding/fairing/sanding/fairing//sanding/painting, when it seems to the outside observer that nothing much seems to be going on, Kevin Agee's boat is back into a phase when progress appears to be going apace. Various projects are going on simultaneously. The foredeck has been glued on, the fish box lid has been formed, the rubrails have been glued on, the intermediate rails have been dry-fitted to fine-tune final position and the centre console is being assembled. See the captions under the photos for explanation.
Nicely faired and sprayed interior of the cuddy cabin. The foredeck has been glued on and is still to be filleted around the edges. The bright white interior will help with keeping this area clean and habitable. It will have a small seat each side and a WC between them.
The fish box lid has been made from multiple layers of Coosa Board, formed to the camber of the aft deck. The lid will be in two halves, hinged at the centre.

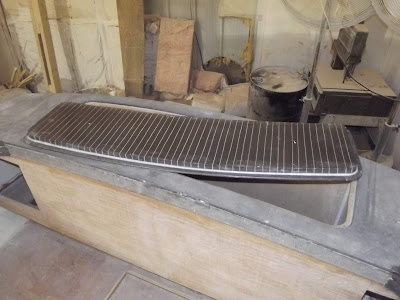

View of the underside of the lid. The white lines are epoxy filling the kerfs that were cut into the lower surface to help with bending to shape while gluing it over a former. The cover will be glassed top and bottom. The rebate around the perimeter allows it to lie flush in the aft deck.
In the foreground are the sides of the aft unit of the centre console, formed with plywood sides and laminated plywood radiused corners. This will form the seats and the live bait well. In the background are the sides of the forward unit, which will house the steering, engine controls and instrumentation.

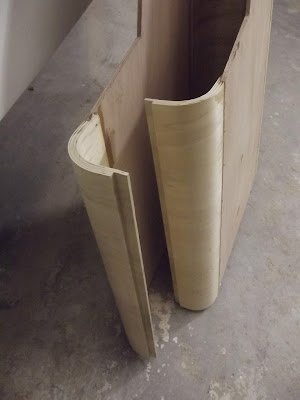

Pre-formed corners of the console are laminated plywood to 15mm total thickness. The flat panels are 9mm plywood, so rebates have been cut 9mm deep and 20mm wide for gluing the flat panels to the corners.

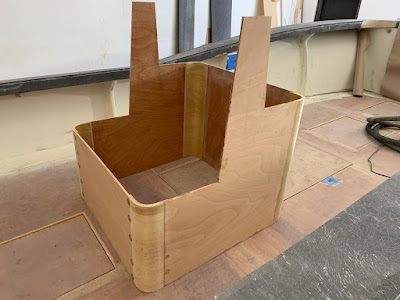

Aft unit of centre console in position in the cockpit. This is the "leaning post" or seat unit. The forward side is the elevated helm seat, above storage. The aft side is the live bait well with an aft-facing seat over it.

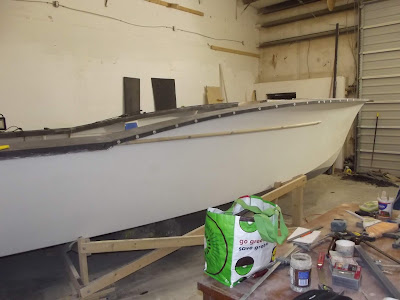

The rubrails have been glued on and must still be shaped, then glassed along with the sidedecks. These are all Coosa Board, a lightweight board for the decks and a more dense board for the rubrails. The intermediate rail is oak and has been dry-fitted for fine-tuning for best aesthetics.
