Thursday, February 28, 2019

Cape Henry 21 & Kits in Australia

The most recent Cape Henry 21 launch was in Adelaide, Australia. "Sealion" is beautiful, built by Ron Jesche, and painted a very pretty blue. Ron is a professional boatbuilder with other boatbuilding projects behind him but most boats to this design are built by amateurs. With more than 100 afloat or in build around the world, this is our most popular plywood traditional sailboat design.

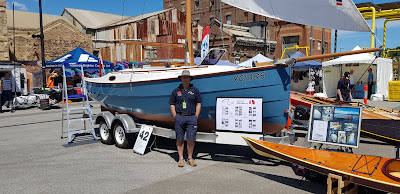

Ron Jesche exhibiting "Sealion" at the Geelong Wooden Boat Festival.
 Ron made a lovely job of the build, both inside and out, with quality joinery. The bright-finished details against white surfaces are traditional finishes for classic boats and create a bright and airy interior.

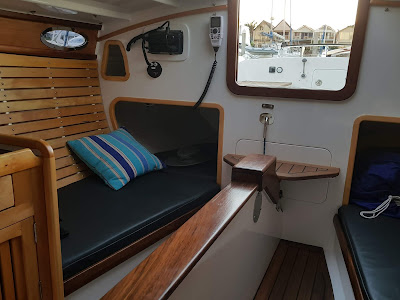

Pretty detailing, nice finishes. The slatted liners are comfortable backrests for the settees.
The raised sheer and flush deck give a comfortable and spacious interior.
Afloat and waiting for her sails.
Ron made some custom changes to his boat. One of them was to add a small diesel motor under the front of the cockpit to replace the standard outboard motor in an outboard well. It fits in neatly, with access through hatches in the cockpit sole and bulkhead. Although the diesel motor is a bit heavier than the outboard that it replaces, it is closer to the centre of gravity of the boat, so has little effect on flotation.
Cockpit hatches to access engine and shaft seal.

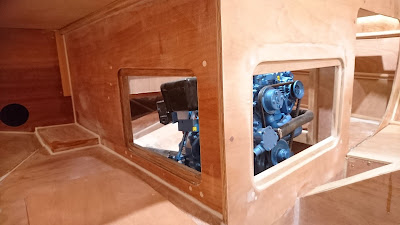

Access openings in bulkheads around the engine.
Ron launched on Christmas eve and had the first sail as a Christmas present. Since then he has sailed her in a wide variety of conditions on all points of sail and tested her for heaving to. He had previously sailed the smaller sister, Cape Cutter 19, and declared them both to be fast, capable and without vices.
"Sealion" romping in a friendly summer breeze, sailing as a cutter with Yankee and staysail.
A few days ago he sent this photo, taken while sailing in light breeze. It was his first outing with Genoa and main, sailing as a sloop. He discovered just how fast these little boats are in light winds.

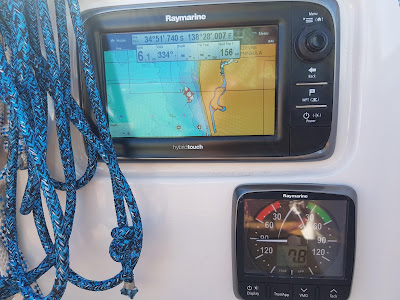

Reaching at 6.1 knots boat speed in 7.8 knots apparent breeze.
While building his Cape Henry 21, Ron Jesche agreed to work as our agent in Australia and since then we have expanded it to include CNC kits for our plywood designs. He is well placed to represent us at boat shows and in the plans and kit markets. To contact Ron Jesche, go to his Stainless Boatworks website at https://stainlessboatworks.com.au/.

To see more of this design or others in our wide range, go to our main website or our mobile website.

Thursday, February 14, 2019

26ft Sportfisherman Stern Detailing

Cockpit work continues on Kevin Agee's 26ft sportfisherman project. The photos tell the story.
Gluing in the cleats around the top of the fish box to support the lid. Many operations in boatbuilding demand hoards of clamps. This is one of them because the cleats must be bent into shape during fitting and held there until the glue cures. The cleats were glassed on exposed surfaces before fitting.
The cleats all done and the Coosa Board deck panel and fascia glued on.
In the corners of the transom, outboard of the fish box, are lockers. In this photo the opening for the door has been cut. The boxing on the left is the duct to take water through the locker to the transom drain. The ball valve is the drain for the fish box and will connect to the hole in the vertical face of the duct, to drain the fish box directly into the drain.
View of the fish box and lockers nearing completion. The doors are dry-fitted and will be installed after painting is completed.. The Coosa Board fascia has been glued on. The cockpit drains can be seen at each end of the toe recess.
The corners are rounded to soften the look of the cockpit and also for comfort when leaning against the decks while working fish. We accomplished this by cutting layers of Coosa Board to equal the height of the fascia. They will be glued in, then glassed over and faired along with the decks and fascias. This is the intersection of the side deck with the fish box.
Same detail at the intersection of the side deck with the foredeck. The foredeck will be fitted after completion of painting the cuddy cabin. The deck has already been glassed and painted, ready to be glued in place on the framing.
Deck stringers seen from below, showing how they are framed into the sheer clamp. These stringers are curly maple and have been precoated with epoxy and will be clear-finished with varnish. The underside of the deck is white-painted.
Also in the cuddy cabin, this box has been glued to the bulkhead to form a step. The opening takes a single drawer tackle box.
Work is about to start on constructing the centre console and leaning post. I am busy on that drawing and the cutting will start next week. A 200 litre live bait well is incorporated into the seat aft of the leaning post.

This design is not on our website yet but you can see our other designs on either our main website or our mobile website.
